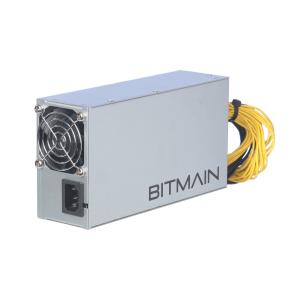

Bitmain 1600w Power Supply Apw3++ For Antminer S15 T15 S9i S9j Z9 L3+ L3++ A9 Z1

Product Categories
Shenzhen Easy Cloud Times Technology Co., Ltd.
Contact Now

Bitmain 1600w Power Supply Apw3++ For Antminer S15 T15 S9i S9j Z9 L3+ L3++ A9 Z1

Brand Name : Bitmain

Model Number : APW3++ Used

Certification : FCC

Place of Origin : China

MOQ : 1

Price : $30-50 Per Piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, PAYPAL, APPLE PAY, GOOGLE PAY, GC REAL TIME BANK TRANSFER, USDT

Supply Ability : 1000 pcs per week

Delivery Time : 2-3days

Packaging Details : carton ,wooden box

Output Power : 1600W

Input Voltage : 100-140 /200-240V AC

Output Voltage : 12.15V

Output Frequency : 47-63HZ

Material : Antminer PSUAluminium

Dimension : 220mm*108mm*62mm

Application : Antminer PSU

Package : Carton

Weight : 1.5KG

Contact Now

Bitmain PSU APW3++ Used for Antminer S15 T15 S9i S9j Z9 L3+ L3++ A9 Z1

Output

DC Voltage

12.0V

Rated Current(200-240V input)

150A

Rated Power (200-240V input)

1800W

Rated Current(100-140V input)

67A

Rated Power (100-140V input)

800W

Ripple & Noise

<1%

Voltage Accuracy

12.0-12.5V

Source Regulation

<1%

Load Regulation

<1%

Setup, Rise Time

<2S

Power off Protection Trip Time

>10mS

Input

Voltage Range

100-140/200-240 V AC

Frequency Range

50-60Hz

Power Factor

>0.99(full load)

Leakage Current

<1.5mA(220V 50Hz)

Protection

Low-voltage Input

80-89V AC

Output Short Circuit

Yes

Output Overcurrent

150-200A

Overheat Protection

Yes

Environment

Operating Temperature

-20-60℃

Operating Humidity

20%-90%RH(non condensing)

Altitude

< 2000m

Structure

Dimensions

206*110*62mm

Weight

2.0kg

Cooling Mode

force air cooling

Noise

43DB

Notes: The PSU is not included in the price. If you need the PSU, please contact me. Thanks!

Supply Ability

Supply Ability: 1000 Piece/Pieces per Week

Algorithm

Minable Coin

SHA-256

DEM, XJO, BTC, BCH, PPC, UNB, ACOIN, CURE, CRW, TRC

Notes

1. Power consumption figures will vary with your PSU's efficiency, the ambient operating temperature and the accuracy of the power meter.

2. There are 3 PCI-e connectors for +12V DC input on each hashing board and all 3 need to be connected to the PSU for the hashboard to operate. Do not connect more than one PSU to the same hashing board!

4. Separate power supply to control board: there is one additional 6pin PCI-e connector on the IO board which must be connected to the PSU to get power. Be sure to power on the miner only after all the 10x PCIE connectors are connected to power supply.

3. Please select the correct address for shipping before you submit your order because the address cannot be changed after the order has been submitted.
